BRASS BALL VALVE
At every production and processing stage, we pay keen attention towards maintaining quality at par with the international standards. Our sturdy in-house quality inspection department is outfitted

BRASS BALL VALVE
At every production and processing stage, we pay keen attention towards maintaining quality at par with the international standards. Our sturdy in-house quality inspection department is outfitted

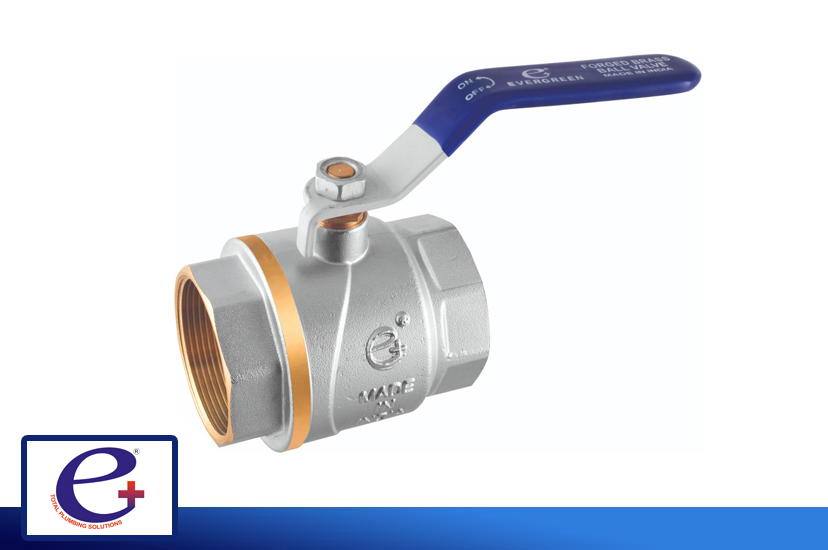

FORGED BRASS BALL VALVE (FEMALE /FEMALE TYPES - HEAVY)

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BVFF-01	½”
BVFF-02	¾”
BVFF-03	1”
BVFF-04	1-¼”
BVFF-05	1-½”
BVFF-06	2”

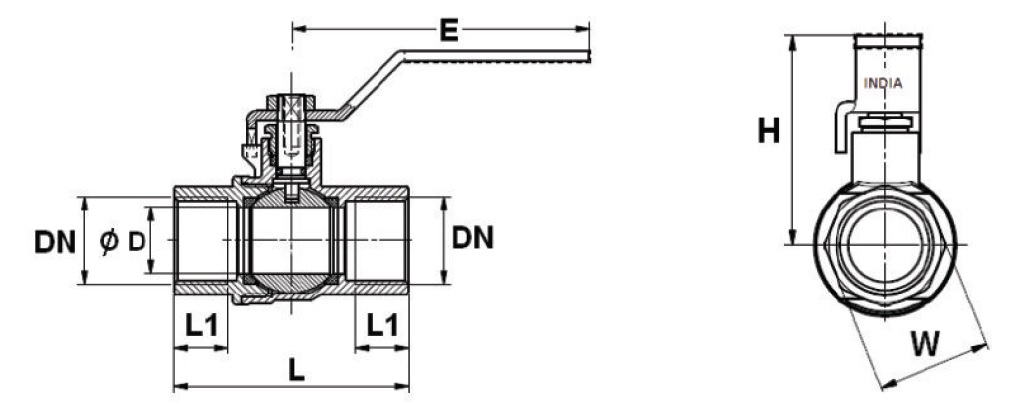

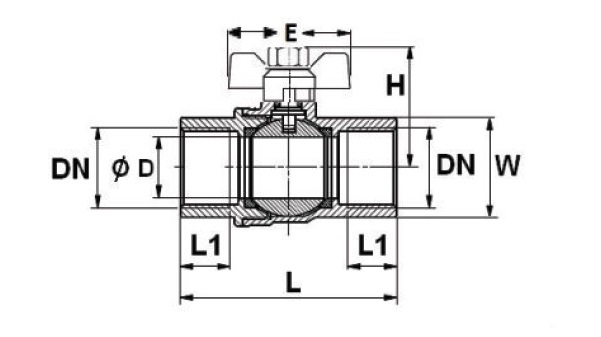

Specific Dimension of Ball Valve In MM

DN	SIZE	D	L	L1	H	E	W
15	½”	14	58	16.5	50	99	24
20	¾”	19	61	13.5	53	99	30
25	1”	24	68	15	64	108	37
32	1-¼”	32	80	17	82	138	46
40	1-½”	47	90	17	86	138	53
50	2”	49	105	19	95	165	64

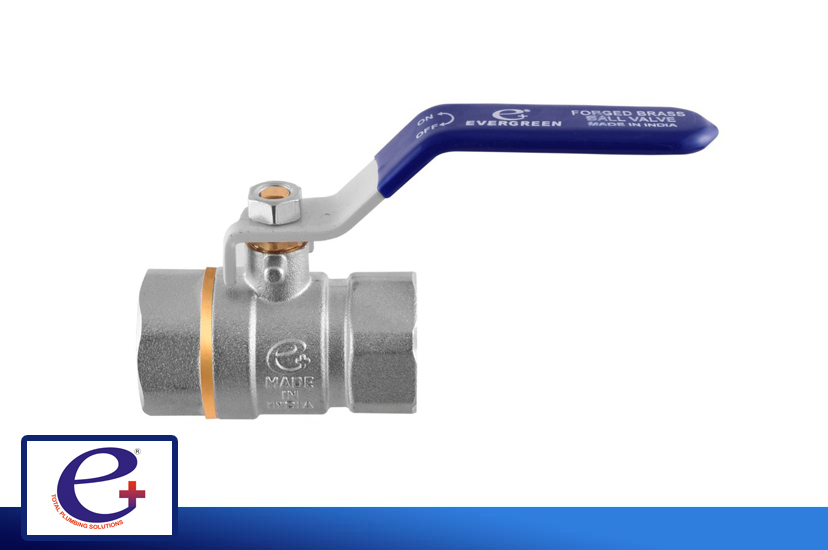

FORGED BRASS BALL VALVE (FEMALE /FEMALE TYPES - MEDIUM)

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BVFF-07	½”
BVFF-08	¾”
BVFF-09	1”

Specific Dimension of Ball Valve In MM

DN	SIZE	D	L	L1	H	E	W
15	½”	13.5	57	16.5	52	99	23.5
20	¾”	17	61	18	55	99	29.5
25	1”	22	69	18	65	108	35

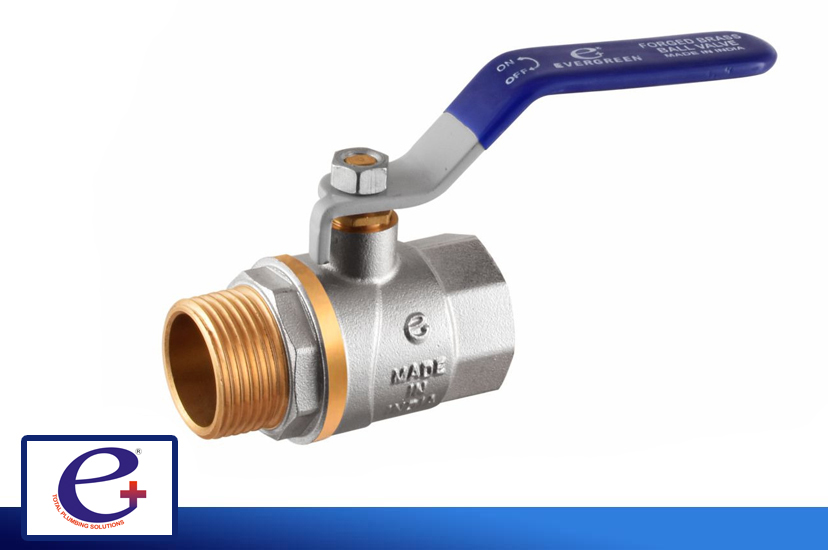

FORGED BRASS BALL VALVE (MALE /FEMALE TYPES)

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BVMF-01	½”
BVMF-02	¾”
BVMF-03	1”
BVMF-04	1-¼”
BVMF-05	1-½”
BVMF-06	2”

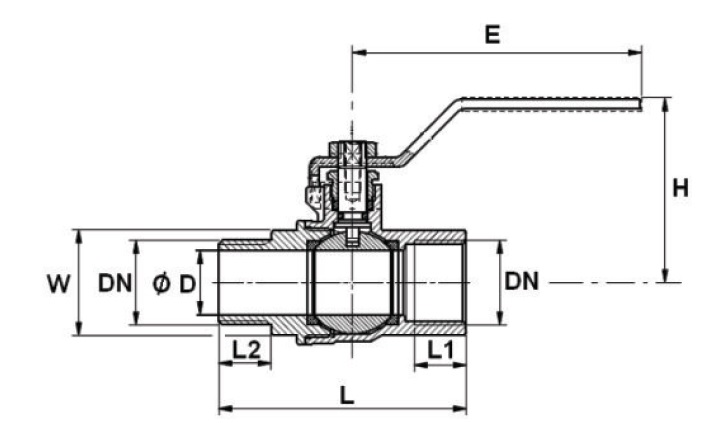

Specific Dimension of Ball Valve In MM

DN	SIZE	D	L	L1	H	E	W
15	½”	14	61	12.5	14	49	24
20	¾”	19	70	13.5	15	53	30
25	1”	24	80	15	17	64	37
32	1-¼”	32	92	17	20	82	46
40	1-½”	37	103	17	21	86	53
50	2”	49	115	19	23	95	64

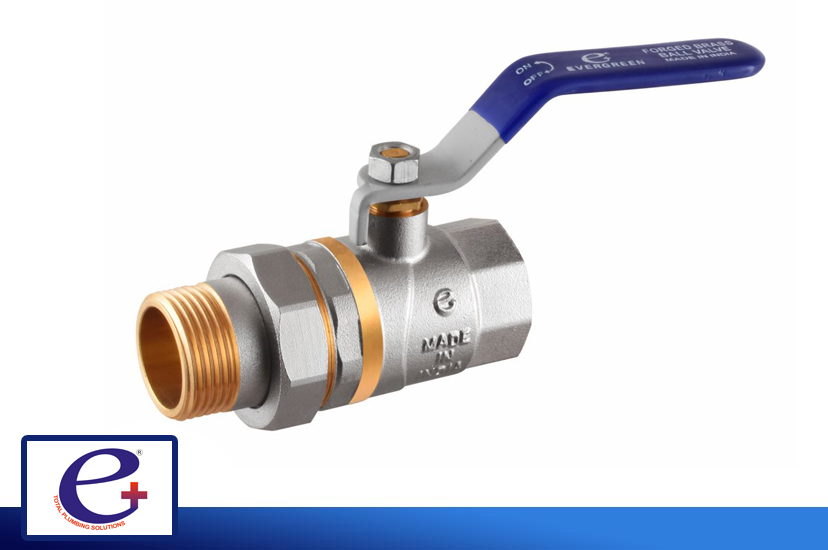

FORGED BRASS BALL VALVE WITH UNION EXTENSION

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BVUN-01	½”
BVUN-02	¾”
BVUN-03	1”

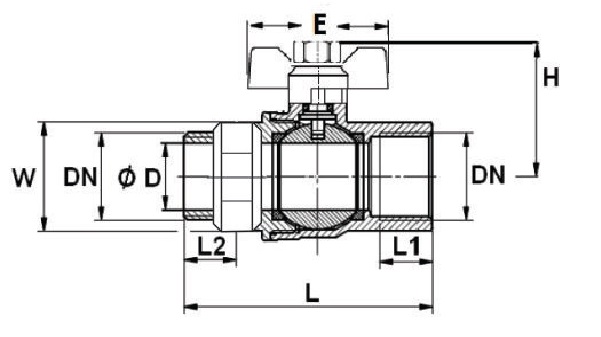

Specific Dimension of Ball Valve In MM

DN	SIZE	D	L	L1	L2	H	E	W
15	½”	14	82	12.5	14	49	99	24
20	¾”	19	88	13.5	15	53	99	30
25	1”	24	99	15	17	64	108	37

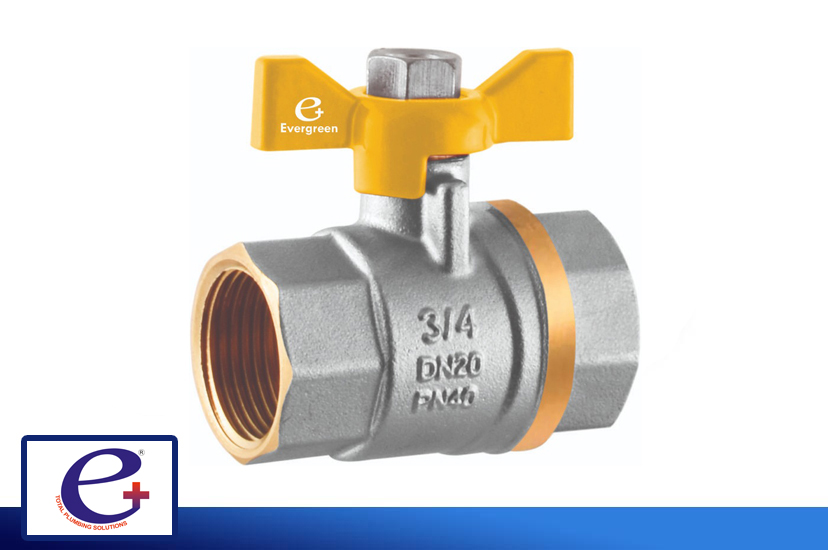

FORGED BRASS BUTTERFLY VALVE (FEMALE/FEMALE TYPES)

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BVFF-01	½”
BVFF-02	¾”

Specific Dimension of Butterfly Valve In MM

DN	SIZE	D	L	L1	H	E	W
15	½”	14	51	12.5	39	52	24
20	¾”	19	61	13.5	42	52	30

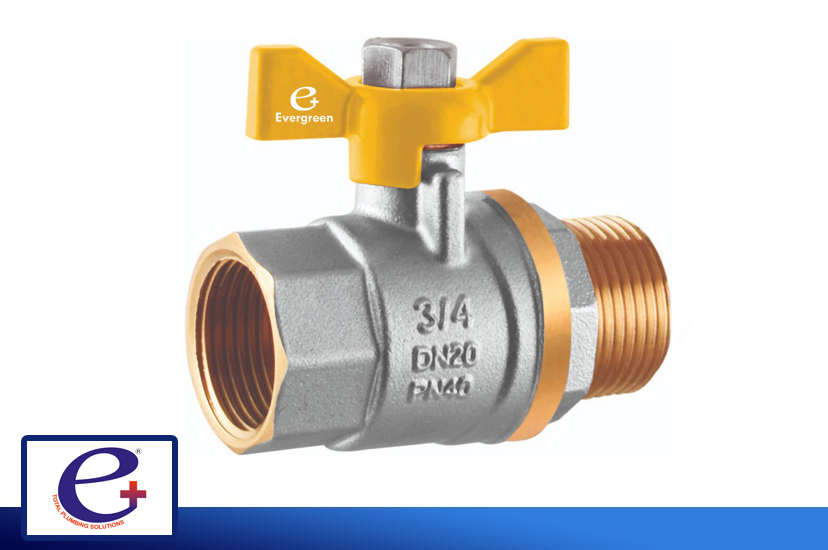

FORGED BRASS BUTTERFLY VALVE (MALE/FEMALE TYPES)

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BTMF-01	½”
BTMF-02	¾”

Specific Dimension of Butterfly Valve In MM

DN	SIZE	D	L	L1	H	E	W
15	½”	14	51	12.5	39	52	24
20	¾”	19	61	13.5	42	52	30

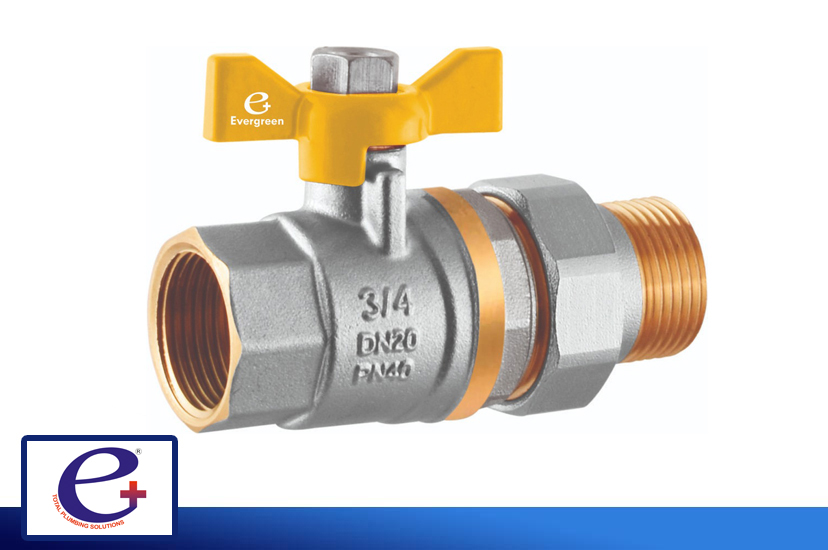

FORGED BRASS BUTTERFLY VALVE WITH UNION EXTENSION

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
BTUN-01	½”
BTUN-02	¾”

Specific Dimension of Butterfly Valve In MM

DN	SIZE	D	L	L1	H	E	W
15	½”	14	51	12.5	39	52	24
20	¾”	19	61	13.5	42	52	30

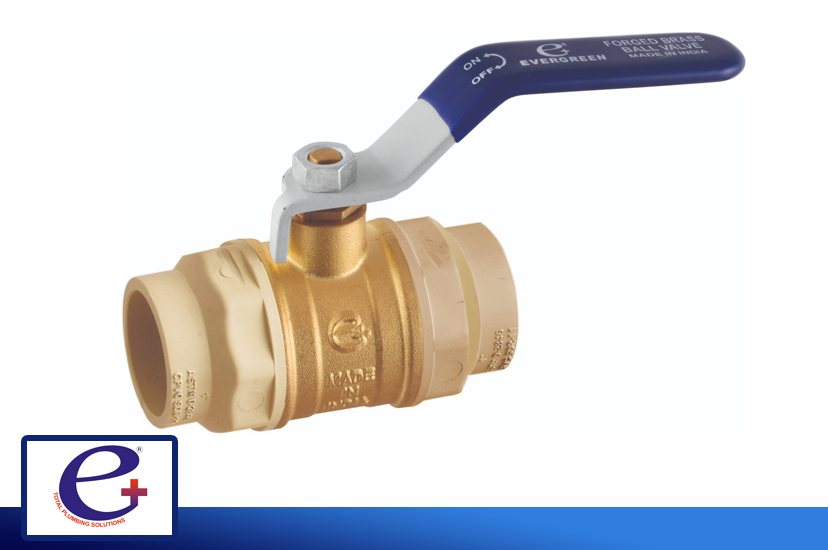

cPVC BRASS BALL VALVE (TWO SIDE cPVC)

1st gallery Thumb

Design Structure

1st gallery Thumb

Product Detail

CODE	SIZE
CPBV-02	¾”
CPBV-03	1”
CPBV-04	1-¼”

Specific Dimension of cPVC Valve In MM

DN	SIZE	D	L	L1	H	E
20	¾”	14	76	23	52	99
25	1”	24	87	23	64	108
32	1-¼”	26	93	26	64	108

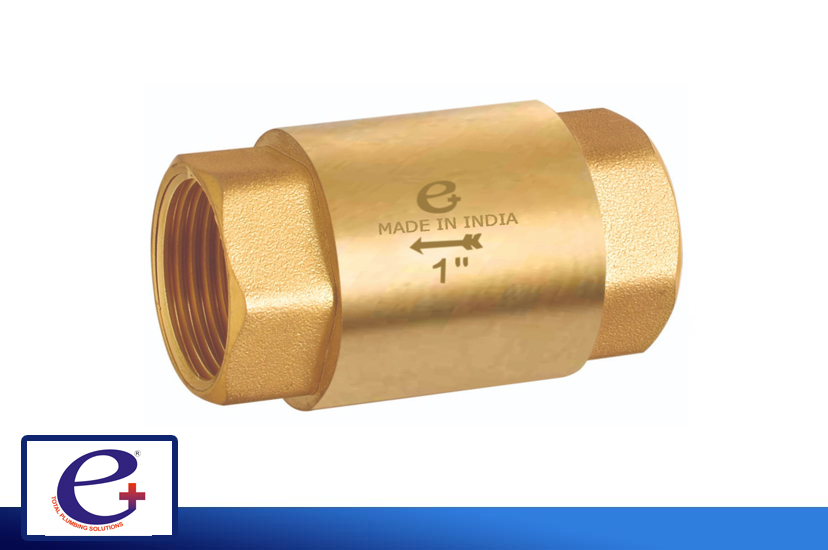

BRASS CHECK VALVE (VERTICAL)

1st gallery Thumb

Design Structure

1st gallery Thumb

Specific Dimension of Check Valve (Vertical) In MM

CODE	DN	SIZE	A	A/F	A/C	G	H	L	I
BCVV-01	15	½”	12	24	26	½”	34	52	18
BCVV-02	20	¾”	14	30	32	¾”	35	60	20
BCVV-03	25	1”	18	36	40	1”	44	75	27
BCVV-04	32	1-¼”	18	47	50	1-¼”	57	75	36
BCVV-05	40	1-½”	18	54	58	1-½”	65	78	41
BCVV-06	50	2”	18	65	70	2”	80	80	53

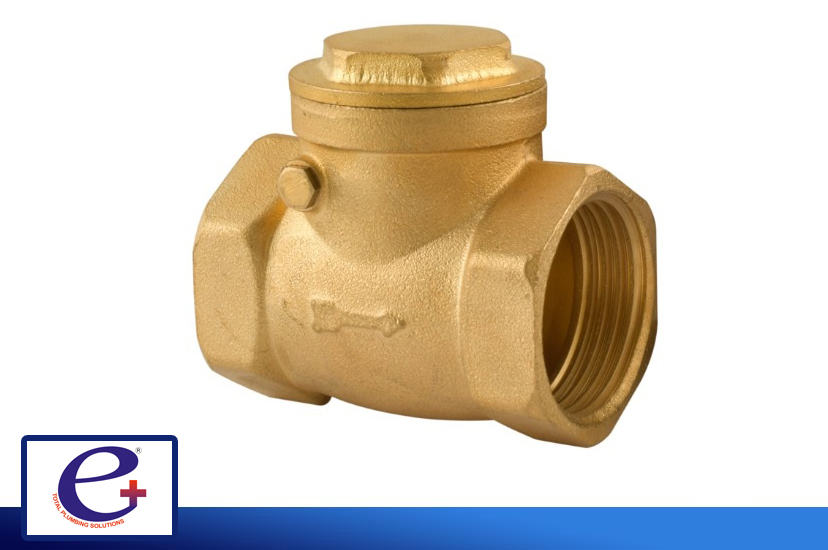

BRASS CHECK VALVE (HORIZONTAL)

1st gallery Thumb

Design Structure

1st gallery Thumb

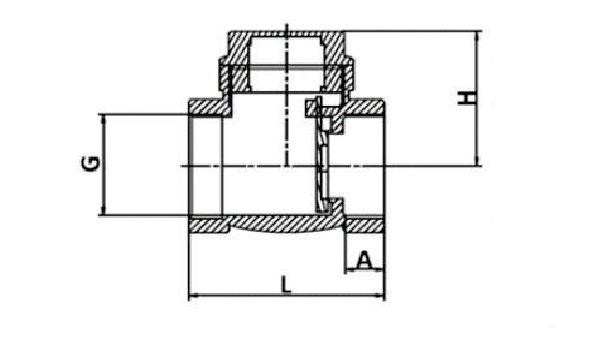

Specific Dimension of Check Valve (Horizontal) In MM

CODE	DN	SIZE	A	G	H	L
BCVH-01	15	½”	12	½”	33	47
BCVH-02	20	¾”	13	¾”	36	55
BCVH-03	25	1”	14	1”	43	60
BCVH-04	32	1-¼”	15	1-¼”	49	68
BCVH-05	40	1-½”	15	1-½”	53	76
BCVH-06	50	2”	15	2”	64	82
